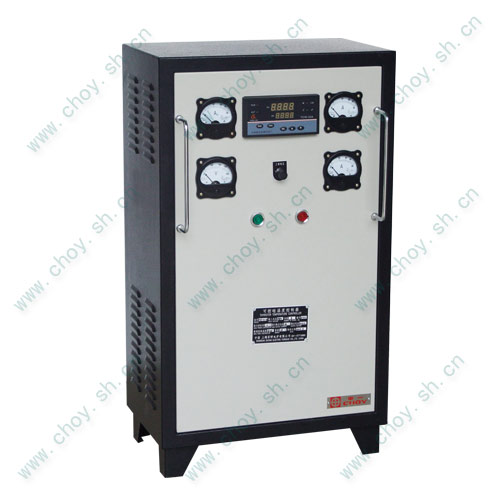

KSY-12-16可控硅程序控制器

更新:2014/10/10 10:46:13 点击:
  • 产品品牌
  • 产品型号 7613133916
  • 在线订购
产品介绍

产品说明
     KSG系列、KSY系列温度控制器,均为各种系列实验室电炉配套的简易式专用控制设备,结构简单,操作方便。KSG系列是通过温度有指示调节仪和接触器的作用、来控制对电炉供电。KSY系列是通过改变可控硅元件导通角的大小,来调节输出功率,控制精度较高。上述二个系列的温度控制器均需与热电偶配合使用,对电炉的温度进行测量、指示和自动控制。KSG与KSY系列是数显式温度控制器,不仅能自动测量、控制电炉温度,尚能对炉膛温度进行显示。
    KSG Series and KSY Series temperature controllers are special temperature controlling equipments of simple type for various laboratory furnaces,with the advantages of simple construction KSY and easy operation.The supplying power to the turnace is controlled through temperature indicating regulators and contactors in KSG series,while the output power is regulated by changing the conductive angle of SCR with higher controlling precision in KSY series.Above-mentioed two series of temperature controller should be coupled with thermal counples.These controller give a erfect performance of measurement,indication and automatic control of electric furnaces.KSF KSY Series digital display temperature controller cannot only measure and control the furnace temperature,but also display the digital of the temperature of the furnace chamber.

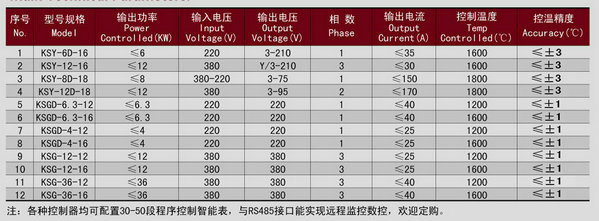

主要技术参数
Main Technical Parameters:


注:各种控制器均可配置30-50段程序控制智能表,与RS485接口能实现远程监控数控,欢迎定购。
